Sanborn UFV 200T Ultrafiltration System

The Sanborn UFV 200T Ultrafiltration System is a highly compact vertical UF System specifically designed for the disposal of oily wastewater streams, mop water disposal, vibratory deburring solutions, etc.  The UFV 200T system is specially designed with tubular UF membranes and a seal-less vertical centrifugal pump so that the system can process wastewater with a minimum of system maintenance. The UFV 200T is configured with a Polypropylene UF Working tank to provide the smallest footprint available and is capable of processing up to 200 GPD of oily wastewater.

The UFV 200T System is constructed of corrosion resistant process components such as the Polypropylene Tank and Skid, PVC Piping and SS Circulation Pump, etc.

Sanborn UVF System Benefits and Features:

Self-Contained Packaged System

  • Systems are delivered as a pre-piped, pre-wired and pre-tested equipment skids to minimize system installation, commissioning and start-up.
  • Simple Installation with minimal manpower
  • Easily expandable to double processing capacity

Simple and Reliable Operation

  • Sanborn UF Systems are equipped with vertical centrifugal seal-less process pumps can handle highly abrasive solids without the associated downtime with pump maintenance and seal replacement.
  • The 1/2" tubular UF membrane modules are highly durable and process resilient allowing the processing of oily wastewater streams that are loaded with high concentrations of solids that are typically associated with metal working operations such as mop water, vibratory deburring and water-soluble grinding coolants.

Dramatic Direct Cost Savings

  • Reduces Parts Washer Solution disposal costs by upwards of 98%+ depending on the % of oil in the feed stream
  • Increases opportunities for recycling fluids and wastewater streams to save the recurring costs of new fluid purchases and waste disposal.

Simple Operation and Reliable Performance

  • Operates with a single pump and no chemical additives.
  • Membranes provide a positive barrier between process and the environment.
  • Applications

    • Oily Wastewater Disposal
    • Spent Coolants
    • Vibratory Deburring Solutions
    • Mop Water Disposal
    • Biological Treatment Wastewater
    • Air Compressor Blowdown Water
  • Specifications

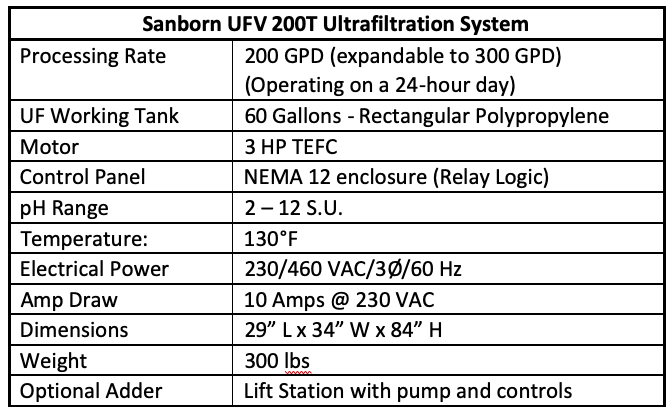

    Specifications
